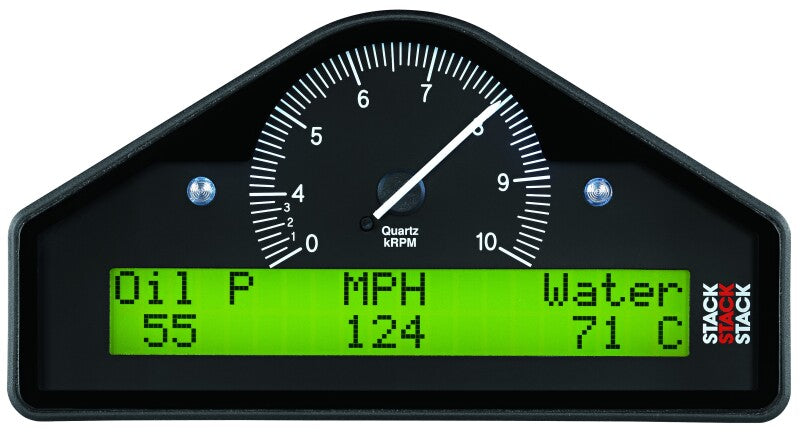

AutoMeter Stack Multi-Function Dash Display Logger (MFD) 0-8K RPM - Black
Regular price
$3,397.99
Pickup currently unavailable
The St8916 Multi-Function Display System Combines The Proven Benefits Of Integrated Stack Display Systems With The Latest Stack Multi-Function Technology. The Stack Mfd Comes Standard With 14 Inputs (Enough To Handle Most Drivetrain And Driver Input Data Streams) And Can Be Expanded To Monitor Up To 45 Channels For More Advanced Users. System Includes Internal Voltage Channel, 3 +/- 6G Internal Accelerometers, And Lap Sensor Channel Standard As Well As 4 Universal Pulse (Speed) / Analog (0-5V) Inputs And 6 Standard Analog (0-5V) Inputs. Lap Beacon Receiver And Wheel Speed Sensor Standard, To Enable Engine Rpm, Wheelspeed, G-Force Data And Track Mapping Out Of The Box. Stack Mfds Have 32Mb Of Memory, And User Selectable Channel Recording Frequencies Of Up To 200Hz (200 Samples Per Second) With 10 Bit Resolution (16 Bit Digital Inputs Optional), With A Maximum System Sample Rate Of 4000 Samples Per Second For A Total Of 20 Channels Able To Be Recorded At Maximum Frequencies For Extremely Detailed Data Analysis.
- Toggle between Distance and Time base Charting, Overlay Chart data from different, or same, run, Rolling Lap Time Chart and Report, Timeline and Corner Radius Charts, Overlay different types of parameter on the same chart e.g.
- Integrated data logging - 32Mb of memory, and user selectable channel recording frequencies of up to 200Hz (200 samples per second) with 10 bit resolution (16 bit digital inputs optional)
- with a maximum system sample rate of 4000 samples per second for a total of 20 channels able to be recorded at maximum frequencies for extremely detailed data analysis.
- Logbook feature for organized digital record keeping about vehicle setup (tire pressures & compounds, damper settings, temperature and weather conditions, etc.)
- Integrated switches and alarm lights - Internal Warn and Shift Light Lamps with external outputs and included external push botton driver controls
- 14 standard inputs - 1x RPM, 3x Flexible Digital / 0-5V Analog, 5x 0-5V Analog, 1x LAP, 1x Battery Voltage, 3x Inboard Accelerometers
- Complete system" ready out of the box" including wiring harness, lap time receiver, speed sensor, USB interface and DataPro software.
- Fully customizable and user configurable Layouts, Layout Manager allows Layouts to be grouped together for different tasks and users
- Fully configurable LCD and Intelligent Alarm System via" drag & drop" setup on PC equipped with included DataPro Designer Software
- Steering and Lateral G, Track Map shows the actual track position relating to the cursor position on the Charts, and more!
- Optionally enable ECU Canbus data stream and GPS mapping functions with purchase of adapter harnesses sold separately.
- Expandable up to 45 channels of data. Additional input expansions sold separately.
- Lap Normalization ensures all laps overlay accurately for data comparison
- Docking Panes feature means that a data analysis pane is never hidden
- Track Mapping from recorded vehicle data (inertial or GPS)
- Professional Wiring Loom with Military Connector
- Includes powerful DataPro analysis software
- Pre-configured layouts to help novice users
- Sealed (IP67) Carbon Composite Casing
Regular price
$3,397.99
The St8916 Multi-Function Display System Combines The Proven Benefits Of Integrated Stack Display Systems With The Latest Stack Multi-Function Technology. The Stack Mfd Comes Standard With 14 Inputs (Enough To Handle Most Drivetrain And Driver Input Data Streams) And Can Be Expanded To Monitor Up To 45 Channels For More Advanced Users. System Includes Internal Voltage Channel, 3 +/- 6G Internal Accelerometers, And Lap Sensor Channel Standard As Well As 4 Universal Pulse (Speed) / Analog (0-5V) Inputs And 6 Standard Analog (0-5V) Inputs. Lap Beacon Receiver And Wheel Speed Sensor Standard, To Enable Engine Rpm, Wheelspeed, G-Force Data And Track Mapping Out Of The Box. Stack Mfds Have 32Mb Of Memory, And User Selectable Channel Recording Frequencies Of Up To 200Hz (200 Samples Per Second) With 10 Bit Resolution (16 Bit Digital Inputs Optional), With A Maximum System Sample Rate Of 4000 Samples Per Second For A Total Of 20 Channels Able To Be Recorded At Maximum Frequencies For Extremely Detailed Data Analysis.
- Toggle between Distance and Time base Charting, Overlay Chart data from different, or same, run, Rolling Lap Time Chart and Report, Timeline and Corner Radius Charts, Overlay different types of parameter on the same chart e.g.
- Integrated data logging - 32Mb of memory, and user selectable channel recording frequencies of up to 200Hz (200 samples per second) with 10 bit resolution (16 bit digital inputs optional)
- with a maximum system sample rate of 4000 samples per second for a total of 20 channels able to be recorded at maximum frequencies for extremely detailed data analysis.
- Logbook feature for organized digital record keeping about vehicle setup (tire pressures & compounds, damper settings, temperature and weather conditions, etc.)
- Integrated switches and alarm lights - Internal Warn and Shift Light Lamps with external outputs and included external push botton driver controls
- 14 standard inputs - 1x RPM, 3x Flexible Digital / 0-5V Analog, 5x 0-5V Analog, 1x LAP, 1x Battery Voltage, 3x Inboard Accelerometers
- Complete system" ready out of the box" including wiring harness, lap time receiver, speed sensor, USB interface and DataPro software.
- Fully customizable and user configurable Layouts, Layout Manager allows Layouts to be grouped together for different tasks and users
- Fully configurable LCD and Intelligent Alarm System via" drag & drop" setup on PC equipped with included DataPro Designer Software
- Steering and Lateral G, Track Map shows the actual track position relating to the cursor position on the Charts, and more!
- Optionally enable ECU Canbus data stream and GPS mapping functions with purchase of adapter harnesses sold separately.
- Expandable up to 45 channels of data. Additional input expansions sold separately.
- Lap Normalization ensures all laps overlay accurately for data comparison
- Docking Panes feature means that a data analysis pane is never hidden
- Track Mapping from recorded vehicle data (inertial or GPS)
- Professional Wiring Loom with Military Connector
- Includes powerful DataPro analysis software
- Pre-configured layouts to help novice users
- Sealed (IP67) Carbon Composite Casing
