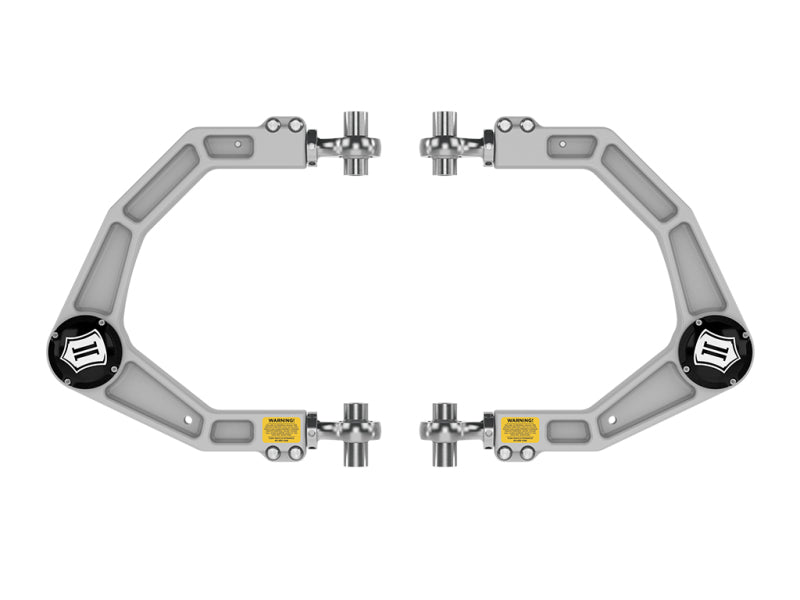

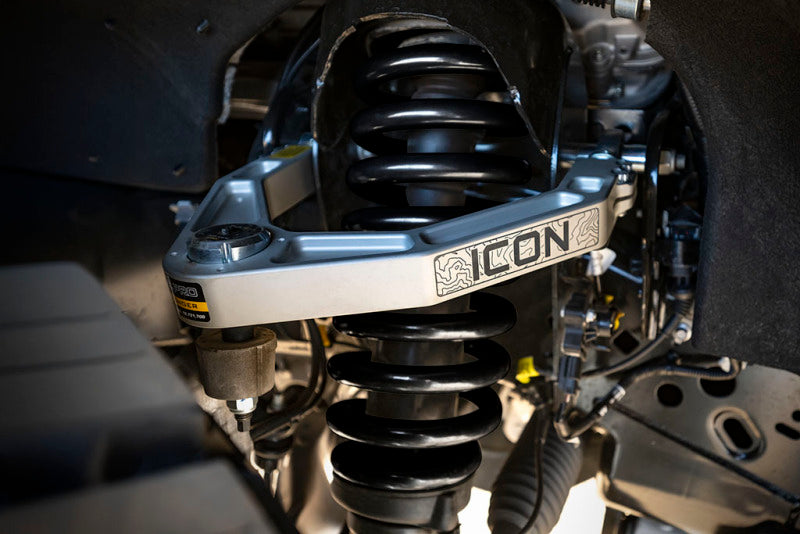

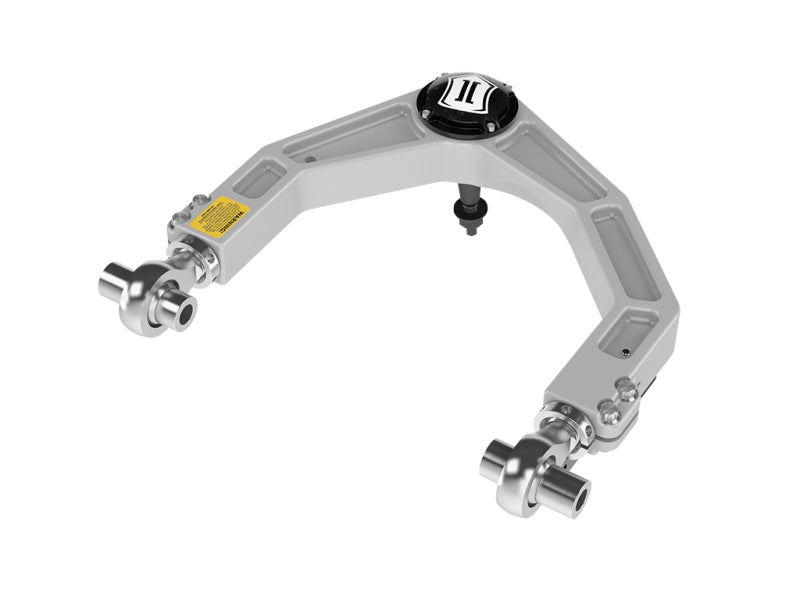

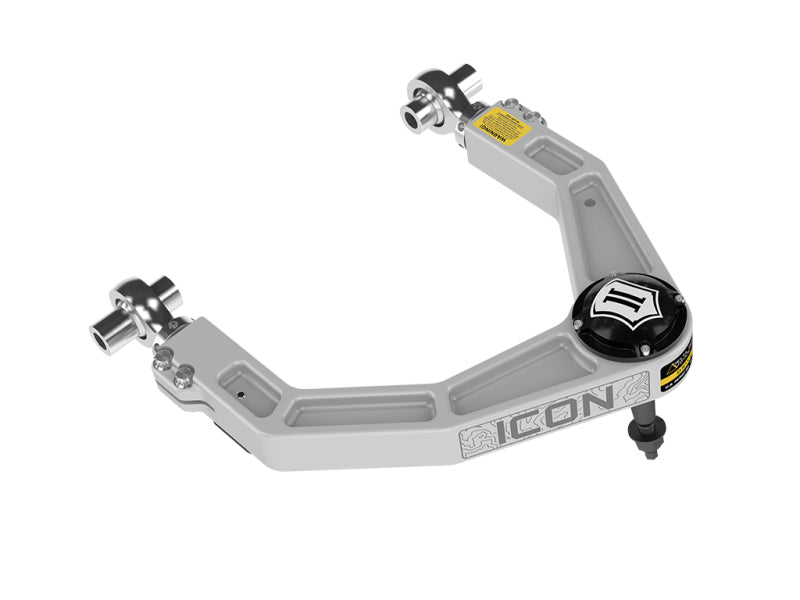

ICON Ford F-150 Raptor Billet Upper Control ARM w/ Delta Joint Pro Kit
Regular price
$1,659.99
Pickup currently unavailable
Delta Joint PRO is ICON's innovative new suspension articulation joint which combines the durability and longevity of factory style ball joints with performance and strength that exceeds traditional motorsports-style ball joints. Strength and durability are improved by using a larger ball with 56% more bearing surface than our standard Delta Joint, along with improved lubrication sealing. But improved performance is at the heart of the Delta Joint PRO, with a full 90 degrees of articulation, from one extreme to the other. This represents a 14% improvement in range of motion, over the highly capable original Delta Joint, allowing for maximum bind-free suspension movement through the complete range of travel. The Delta Joint PRO is built to take the abuse, with a chromoly ball and shaft that has a bearing surface hardened to Rockwell C 55. The replaceable races are made of graphite-impregnated sintered metal, machined to the finest tolerance to provide a flawless, metal-to-metal bearing interface. We also redesigned the lubrication system, with lubricant channels that distribute grease more efficiently without extending past the bearing seal.
- Corrects suspension geometry and allows for proper wheel alignment on Gen3 Raptors with up to 3” of front lift
- Patented Delta Joint PRO (U.S. Pat. 10,731,700) allows maximum articulation without binding

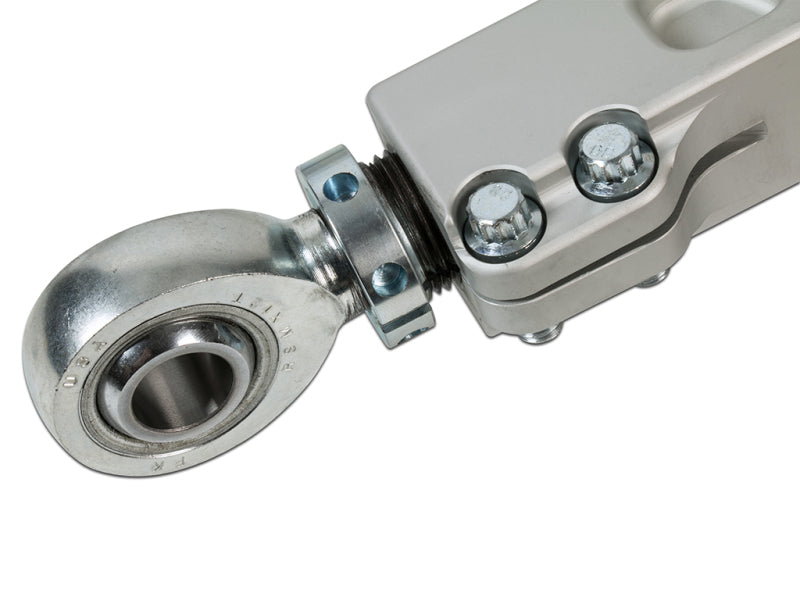

- FK Rod Ends at chassis pivots for strength and precision driving characteristics
- CNC machined 6061 billet aluminum construction with satin anodized finish
- Quick, precise, on-vehicle adjustment for both caster and camber
- Delta Joint PRO is 100% serviceable and rebuildable
- Built in O-ring sealed dust cover cap
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2021-2025 | Ford | F-150 | Raptor |
Regular price
$1,659.99
Delta Joint PRO is ICON's innovative new suspension articulation joint which combines the durability and longevity of factory style ball joints with performance and strength that exceeds traditional motorsports-style ball joints. Strength and durability are improved by using a larger ball with 56% more bearing surface than our standard Delta Joint, along with improved lubrication sealing. But improved performance is at the heart of the Delta Joint PRO, with a full 90 degrees of articulation, from one extreme to the other. This represents a 14% improvement in range of motion, over the highly capable original Delta Joint, allowing for maximum bind-free suspension movement through the complete range of travel. The Delta Joint PRO is built to take the abuse, with a chromoly ball and shaft that has a bearing surface hardened to Rockwell C 55. The replaceable races are made of graphite-impregnated sintered metal, machined to the finest tolerance to provide a flawless, metal-to-metal bearing interface. We also redesigned the lubrication system, with lubricant channels that distribute grease more efficiently without extending past the bearing seal.
- Corrects suspension geometry and allows for proper wheel alignment on Gen3 Raptors with up to 3” of front lift
- Patented Delta Joint PRO (U.S. Pat. 10,731,700) allows maximum articulation without binding
- FK Rod Ends at chassis pivots for strength and precision driving characteristics
- CNC machined 6061 billet aluminum construction with satin anodized finish
- Quick, precise, on-vehicle adjustment for both caster and camber
- Delta Joint PRO is 100% serviceable and rebuildable
- Built in O-ring sealed dust cover cap
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2021-2025 | Ford | F-150 | Raptor |
